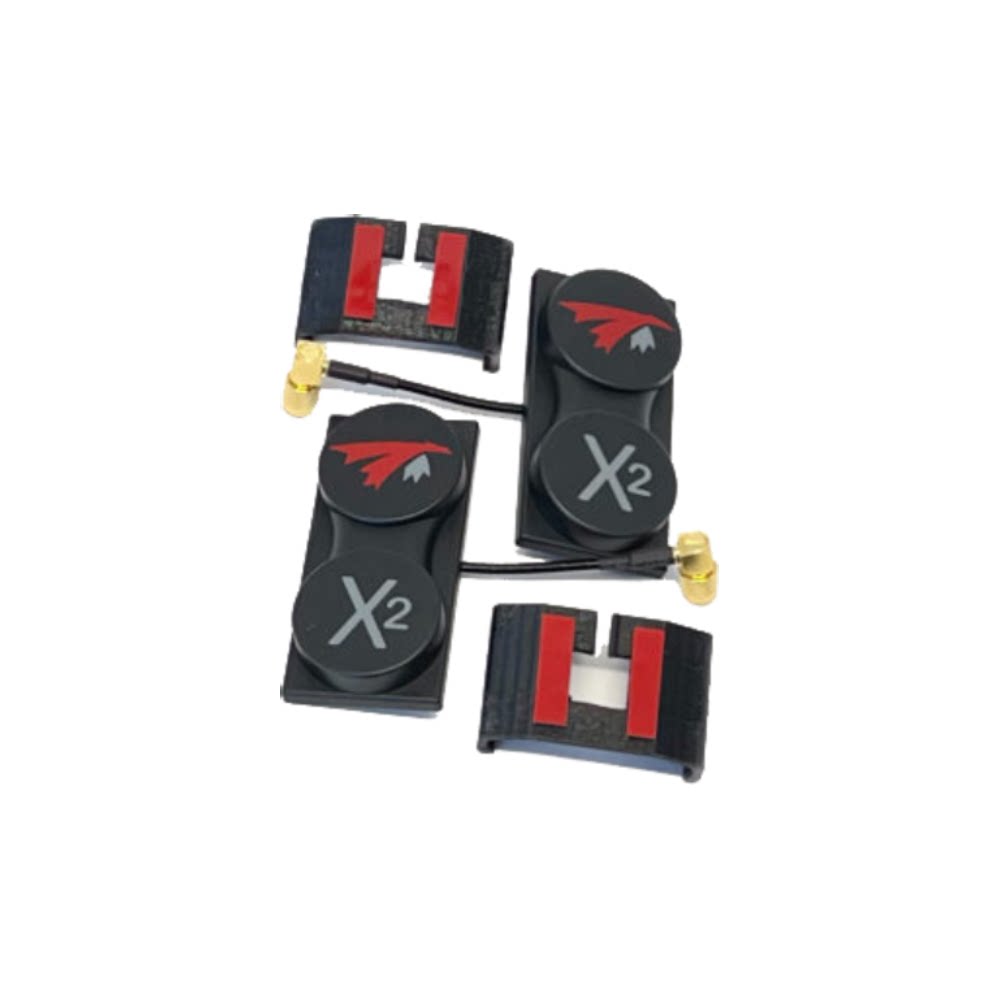

TRUERC X2-AIR 5.8 MK II Pair For HDZERO Goggles
|
0
Total items |
$0.00
Taxes, discounts and shipping calculated at checkout.
Product subtotal |
The X²-AIR 5.8 MK II pair for HDzero goggles delivers 13 dBic gain and a combined 165° beam width. Simply slide the antennas onto the goggles' rails and screw on the custom knurled SMA connectors. Pair with OCP omni-directional antennas for a complete antenna system.
Dual elements array — 13 dBic circular polarized, 75° beam per element
By combining two elements onto a single feed, gain is boosted and horizontal coverage is widened, trading vertical coverage rarely needed in FPV flying.
Low profile — only 15mm thick
The most compact antenna at this gain level. The included slide-on mounts attach natively to the HDzero goggles rails.
Custom knurled SMA connectors
Made to the highest standards to fit HDzero goggles perfectly. Knurled finish for easy hand-tightening.
Specifications
Bandwidth: 5.1GHz–7.0GHz
Gain: 13 dBic
Polarization: LHCP or RHCP
Frequency (GHz):5.8
Type of polarization:Circular polarization
Compatibilities:HD Zero Google
Connector:SMA
Beam-width Horizontal*: 150°
Beam-width Vertical*: 62°
Hor. beam @-3dB**: 75°
Vert. beam @-3dB**: 34°
Connector: Custom knurled SMA
Dimensions: 72mm × 34mm × 15mm
Weight: 20g each
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
